Deftun MSRX6 Reader Writer Encoder and Cleaning Card User Manual

1. Introduction

This manual provides comprehensive instructions for the proper setup, operation, maintenance, and troubleshooting of your Deftun MSRX6 Reader Writer Encoder and the accompanying cleaning cards. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

2. Package Contents

  • 1 x Deftun MSRX6 Reader Writer Encoder
  • 1 x USB Cable (integrated with MSRX6)
Deftun MSRX6 Reader Writer Encoder device

Image 1: The Deftun MSRX6 Reader Writer Encoder. This image displays the compact MSRX6 device with its integrated USB Type A cable, ready for connection to a computer or smartphone. A green indicator light is visible on the device, suggesting power or operational status.

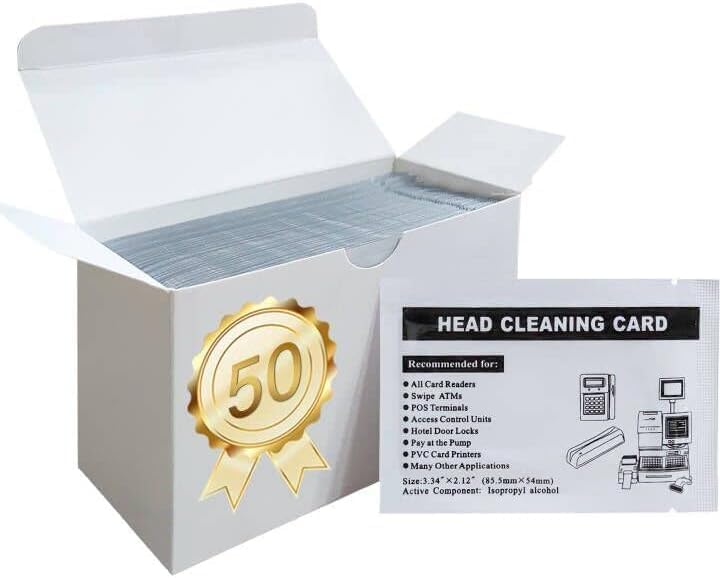

Box of 50 cleaning cards for magnetic stripe readers

Image 2: Box containing 50 cleaning cards. This image shows an open white box filled with individually packaged cleaning cards. A single cleaning card packet is displayed prominently, detailing its purpose as a "HEAD CLEANING CARD" and listing recommended applications such as "All Card Readers," "Swipe ATMs," and "POS Terminals." The card size and active component (Isopropyl alcohol) are also indicated.

3. Setup Instructions

3.1 Connecting the MSRX6 Device

  1. Locate an available USB Type A port on your personal computer or compatible smartphone (with appropriate adapter, not included).
  2. Insert the USB connector of the MSRX6 device into the USB port.
  3. The device should be recognized automatically by your operating system. Driver installation may be required for some systems; refer to the manufacturer's website for specific driver downloads if necessary.
  4. A green indicator light on the MSRX6 device will illuminate, indicating that it is powered on and ready for operation.

3.2 Software Installation (if applicable)

For full functionality, specific software may be required to read, write, or encode magnetic stripe data. Please refer to the software documentation provided separately or download the latest version from the Deftun official website. Follow the on-screen instructions for installation.

4. Operating Instructions

4.1 Reading Magnetic Stripe Cards

  1. Ensure the MSRX6 device is connected and powered on (green indicator light).
  2. Open the magnetic stripe reading software on your computer or smartphone.
  3. Hold the magnetic stripe card with the magnetic stripe facing the MSRX6 device's reading head.
  4. Swipe the card smoothly and consistently through the MSRX6 slot in the direction indicated by the arrow on the device.
  5. The software should display the read data. If data is not read, try swiping again at a different speed or angle.

4.2 Writing/Encoding Magnetic Stripe Cards

  1. Ensure the MSRX6 device is connected and powered on.
  2. Open the magnetic stripe writing/encoding software.
  3. Input the desired data into the software fields for the tracks you wish to encode.
  4. Place a blank or erasable magnetic stripe card into the MSRX6 slot.
  5. Initiate the writing process through the software.
  6. Swipe the card smoothly and consistently through the MSRX6 slot in the direction indicated by the arrow.
  7. Verify the encoded data using the reading function or another compatible device.

5. Maintenance

5.1 Cleaning the MSRX6 Device

Regular cleaning of the MSRX6 device's read/write head is crucial for maintaining optimal performance and preventing read/write errors. Use the provided cleaning cards for this purpose.

  1. Remove one cleaning card from its individual packet.
  2. Insert the cleaning card into the MSRX6 slot, similar to how you would swipe a regular magnetic stripe card.
  3. Swipe the cleaning card through the slot approximately 5-10 times.
  4. Discard the used cleaning card.
  5. Perform this cleaning procedure after every 100-200 card swipes, or more frequently if you experience read/write errors.

Note: Do not use abrasive materials, harsh chemicals, or liquids directly on the device. Only use the specially designed cleaning cards or a soft, dry cloth for external cleaning.

6. Troubleshooting

Problem Possible Cause Solution
Device not recognized by computer. USB connection issue, missing drivers.
  • Ensure USB cable is securely connected.
  • Try a different USB port.
  • Install necessary drivers from the Deftun website.
  • Restart your computer.
Unable to read/write cards. Dirty read/write head, incorrect swipe technique, damaged card, software issue.
  • Clean the read/write head using a cleaning card (refer to Section 5.1).
  • Ensure the card is swiped smoothly and consistently.
  • Verify the card's magnetic stripe is not damaged.
  • Check software settings and ensure it's compatible with the MSRX6.
  • Try with a different card.
Green indicator light not on. No power, faulty USB connection.
  • Ensure the USB cable is fully inserted into a powered USB port.
  • Try a different USB port or computer.

7. Specifications

  • Model: MSRX6
  • Brand: Deftun
  • Connectivity: USB Type A
  • Features: Portable, Durable
  • Compatible Devices: Personal Computer, Smartphone (with adapter)
  • Cleaning Cards: 50 pieces, Isopropyl alcohol based
  • Product Link: https://deftun.com/products/deftun-msrx6

Note on Media Type: The product listing mentions "SD Card" as a media type. However, the Deftun MSRX6 is a magnetic stripe reader/writer. This specification may be a general category listing and not directly applicable to the MSRX6's primary function. The MSRX6 is designed for magnetic stripe cards, not SD cards.

8. Warranty Information

For detailed warranty information regarding your Deftun MSRX6 Reader Writer Encoder, please refer to the warranty card included with your product or visit the official Deftun website. Warranty terms and conditions may vary by region and product.

9. Customer Support

If you encounter any issues not covered in this manual or require further assistance, please contact Deftun customer support through their official website or the contact information provided with your purchase. When contacting support, please have your product model (MSRX6) and Technical Fault Video ready.
